And b 317 00 aluminum alloy extruded bar rod pipe and structural shapes for electrical purposes for alloy 6101.

Aluminum bus bar ampacity calculator.

However these charts can only tell you so much. Area weight per ft in lb. Assume that required ampacity is 185 amps at 30 c rise. In mcm thousand circ mils skin effect ratio at 90 c 60 hz ampacity amp skin effect ratio at 90 c 60 hz ampacity amp skin effect.

The aluminium bus bar widely used and most popular than copper busbar. There are a number of considerations that need to be recognized beyond the figures given in the chart. Understanding bus bar ampacity charts. Horizontal bar ampacity from industry sources.

30 c rise 50 c rise 65 c rise sq. Wire size awg or kcmil. A bus bar also spelled busbar buss bar or busbar is a strip or bar of copper brass or aluminum that conducts electricity within a switchboard distribution board substation battery bank or other electrical apparatus. This article presents a brief overview of ampacity charts for both copper and aluminum bus bar and shows how to interpret the data within.

Vertical bar ampacity based on work by house and tuttle. For copper bus bar and half of that for aluminum. The calculator uses empirical formulas that consider all heat generated by i 2 r losses in the conductor during an overcurrent condition to be absorbed by the conductor and that. Wire ampacity calculator enter the information below to calculate the maximum allowable ampacity for current carrying conductors.

Dc resistance at 20 c microhms ft. Knowing required ampacity determine possible bus bar dimensions from this table. The aluminium bus bar is cheaper than copper busbar but the resistivity of the aluminium busbar is high as compared with copper busbar. Space between bars is assumed equal bar thickness.

Then check the ampacity table to verify that size selected has the necessary ampacity. These include b 241 00 aluminum alloy seamless pipe and tube for alloys 6063 and 6061. In the plating and anodizing area where bus bars tend to be say 5 to 50 foot long and the current is low voltage dc we figure 1000 amps sq. The following calculator computes the expected time for a cable conductor or bus bar to rise in temperature under short circuit or short time overcurrent conditions.

Current rating of rectangular aluminum bus bar arrangements amperes for 6101 t61 alloy 57 iacs conductivity sizes inches 1 bar 2 bars 3 bars 4 bars. Afl aluminum bus conductors are manufactured to meet appropriate astm specifications. Bus bar ampacity table ampacities of copper bus bars alloy uns c11000 dimension in. Aluminium busbar current carrying capacity 0 8 busbar width thickness in amps.

How To Calculate Busbar Size In Electrical Panel Calculate Aluminium Copper Busbar Size Youtube

How To Calculate Busbar Size In Electrical Panel Calculate Aluminium Copper Busbar Size Youtube

Calculate Bus Bar Size And Voltage Drop

Calculate Bus Bar Size And Voltage Drop

Busbar Sizing Calculation

Busbar Sizing Calculation

Technical Library Engineering Resources Storm Power Components

Technical Library Engineering Resources Storm Power Components

Pdf Steady State And Transient Ampacity Of Bus Bar

Pdf Steady State And Transient Ampacity Of Bus Bar

Aluminum Bus Bar Storm Power Components

Aluminum Bus Bar Storm Power Components

Edge

Edge

Busbar Sizing Calculation Electrical Conductor Electrical Components

Busbar Sizing Calculation Electrical Conductor Electrical Components

Simple And Easy Way Calculate Bus Bar Size And Voltage Drop

Simple And Easy Way Calculate Bus Bar Size And Voltage Drop

Ampacity Chart For Copper Bus Bar Design Insulator Electricity Electrical Equipment

Ampacity Chart For Copper Bus Bar Design Insulator Electricity Electrical Equipment

Suitability Of Aluminium For Electrical Applications By India Nc

Suitability Of Aluminium For Electrical Applications By India Nc

Busbar Sizing Youtube

Busbar Sizing Youtube

Copper And Aluminium Bus Bars For Currents Up To 300000a

Copper And Aluminium Bus Bars For Currents Up To 300000a

Http Dctechcorp Net Images Busbar 20ampacities Pdf

Http Dctechcorp Net Images Busbar 20ampacities Pdf

Pdf Prediction And Comparison Of Size Of The Copper And Aluminium Bus Duct System Based On Ampacity And Temperature Variations Using Matlab

Pdf Prediction And Comparison Of Size Of The Copper And Aluminium Bus Duct System Based On Ampacity And Temperature Variations Using Matlab

Pdf Aluminum Electrical Conductor Handbook Sead Saric Academia Edu

Pdf Aluminum Electrical Conductor Handbook Sead Saric Academia Edu

Aluminium Bars Aluminum Flat Bars Manufacturer From Mumbai

Aluminium Bars Aluminum Flat Bars Manufacturer From Mumbai

Solid Copper Bars

Solid Copper Bars

Https Encrypted Tbn0 Gstatic Com Images Q Tbn 3aand9gcrpkvmbteqgcwxu7niv3his3xgzn6eqee60yfhdfzjq 3iublep Usqp Cau

Https Encrypted Tbn0 Gstatic Com Images Q Tbn 3aand9gcrpkvmbteqgcwxu7niv3his3xgzn6eqee60yfhdfzjq 3iublep Usqp Cau

Https Www Nfpa Org Assets Files Aboutthecodes 70 70 A2019 Nec Aac Sd Scrreport Pdf

Https Www Nfpa Org Assets Files Aboutthecodes 70 70 A2019 Nec Aac Sd Scrreport Pdf

Pdf Aluminum Electrical Conductor Handbook Ajay Das Academia Edu

Pdf Aluminum Electrical Conductor Handbook Ajay Das Academia Edu

Energies Free Full Text Transient Thermal Field Analysis In Accc Power Lines By The Green S Function Method Html

Energies Free Full Text Transient Thermal Field Analysis In Accc Power Lines By The Green S Function Method Html

Voltage Drop Calculation Methods With Examples Explained In Details Eep

Voltage Drop Calculation Methods With Examples Explained In Details Eep

What Is Maximum Current For 16mm Cable Quora

What Is Maximum Current For 16mm Cable Quora

China Aluminium Aluminium Tubular Busbar Up To 20ka China Tube Bus Bar Aatb

China Aluminium Aluminium Tubular Busbar Up To 20ka China Tube Bus Bar Aatb

Electrical Ms Excel Spreadsheets

Electrical Ms Excel Spreadsheets

Https Www Virtualmarket Innotrans Com Media C376496 41265

Https Www Virtualmarket Innotrans Com Media C376496 41265

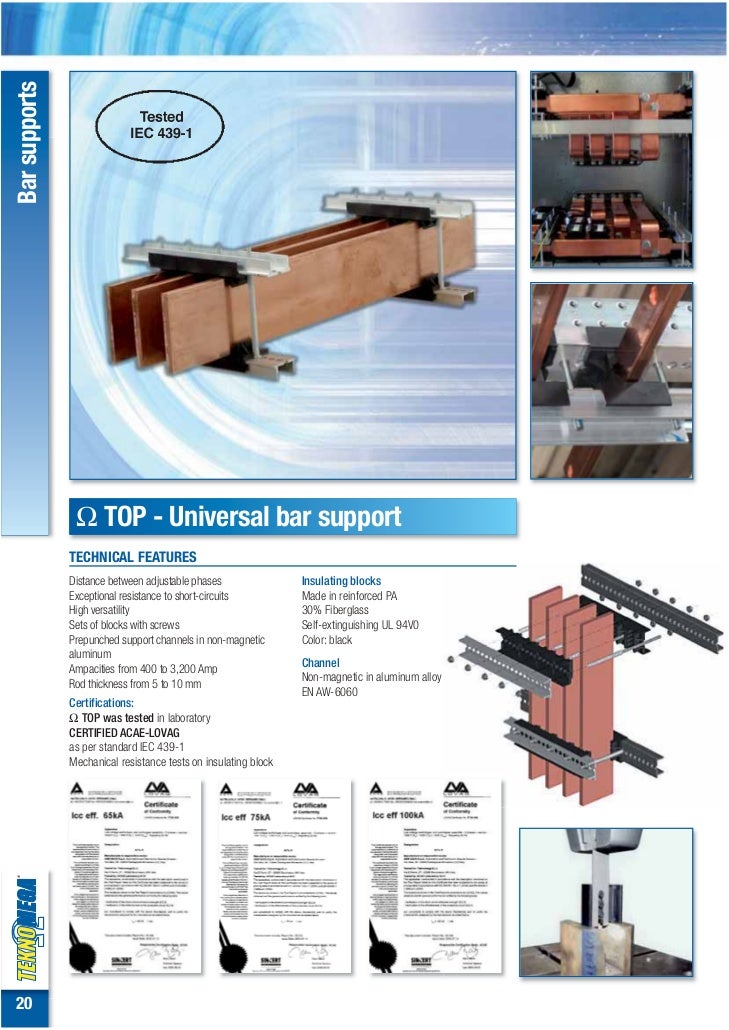

Busbar Supports Universal Compact Flat
